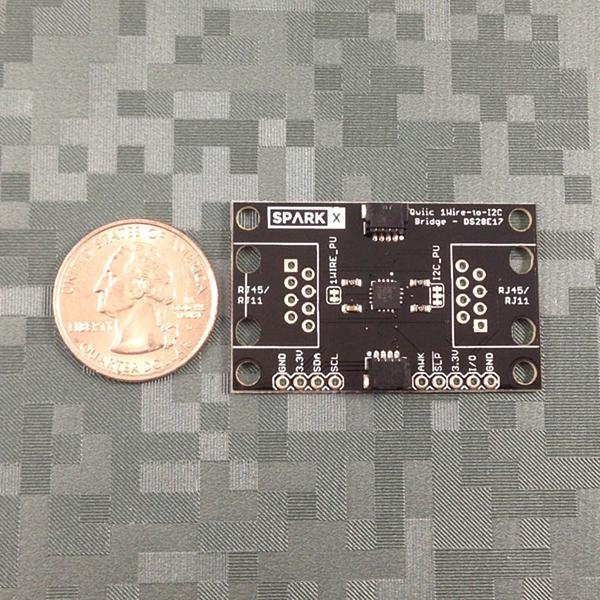

1-Wire to Qwiic Bridge - DS28E17
Discontinued
The 1-Wire to Qwiic Bridge lets you communicate via I2C over very long distances — up to approximately 100 metres depending on the application. It works by packetising I2C data as 1-Wire packets, sending them over the 1-Wire bus to the DS28E17 bridge chip, which translates them back to I2C for any connected slave device. Communication is bidirectional.
Multiple bridges can be daisy-chained for multi-node networks, with footprints for both RJ45 and RJ11 connectors provided for convenient wiring. Each DS28E17 has a unique 64-bit ROM address, allowing I2C devices with limited addressing to be attached to separate bridges and addressed individually — no multiplexer needed.
Key Features
- Bridge Chip – DS28E17 (1-Wire IN / I2C OUT)
- Communication Range – Up to ~100 m over 1-Wire bus
- Unique Addressing – 64-bit ROM registration number per bridge
- Connectors – Qwiic (I2C side), footprints for RJ45 and RJ11 (1-Wire side)
- Daisy-chainable – Multiple bridges on one 1-Wire bus
- Qwiic Compatible – Solderless connection to Qwiic-enabled boards and sensors
Ideal For
- Long-distance I2C communication (sensor networks, building automation)
- Multi-node I2C networks without address conflicts
- Extending Qwiic sensor reach beyond typical I2C cable lengths
Package Contents
- 1× 1-Wire to Qwiic Bridge (DS28E17)
