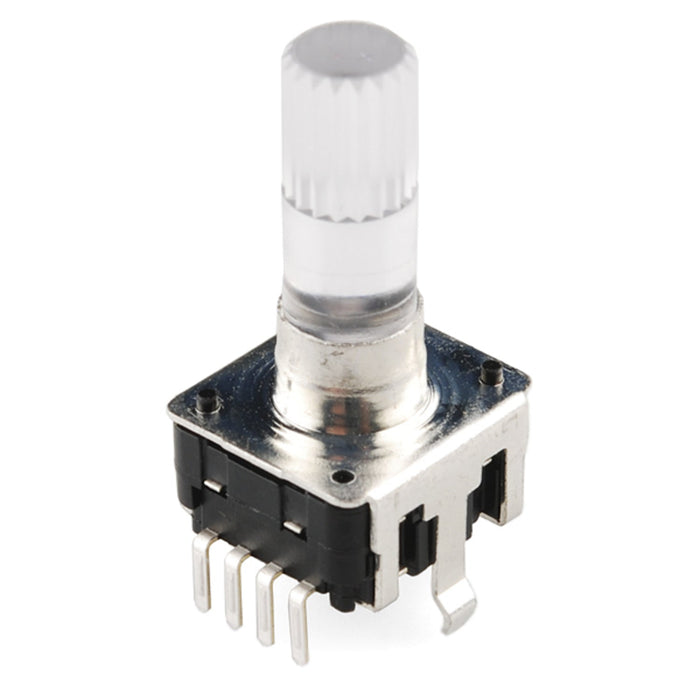

Rotary Encoder - Illuminated (Red/Green)
Discontinued
This illuminated rotary encoder combines a full-rotation encoder, a built-in red/green LED, and a push-button switch in a single component. Unlike potentiometers, rotary encoders offer unlimited rotation and output gray code, letting you detect both the direction and amount of rotation.
The vertical through-hole mount design makes it easy to integrate into PCB projects, and the built-in LED adds visual feedback directly at the control point.
Key Features
- Full Rotation Encoder – No stop limits, with gray code output
- Built-In Red/Green LED – Illuminated shaft for visual feedback
- Integrated Push-Button – Click-to-select functionality (0.5 mm travel)
- 6mm Shaft Diameter – 18 mm shaft length
- Through-Hole Mount – Vertical PCB mounting
Ideal For
- Menu navigation and value adjustment interfaces
- Audio volume and parameter controls
- Custom input devices and controllers
- Arduino and microcontroller projects
Package Contents
- 1× Illuminated rotary encoder (red/green LED, push-button)
