Motor Bridge Cape

$40.96

Part Number:  SS-105030006
Brand:  Seeed Studio Australia

Description The Motor Bridge Cape features bi-directional motor control using two TB6612FNG integrated dual H-bridge, so it can control two stepper motors or four brushed DC motors with 6~15V DC power and about 1A current draw per motor. The cape provides 5V regulated power to BBG or BBB with a max input voltage of 15V. It also has six servo control interface and six expand...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Description

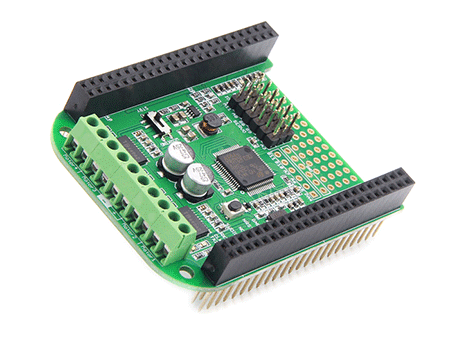

Motor Bridge Cape


The Motor Bridge Cape features bi-directional motor control using two TB6612FNG integrated dual H-bridge, so it can control two stepper motors or four brushed DC motors with 6~15V DC power and about 1A current draw per motor. The cape provides 5V regulated power to BBG or BBB with a max input voltage of 15V. It also has six servo control interface and six expand IO. All the features are provided by the on board STM32F0 coprocessor. The coprocessor can communicate with BeagleBone by I2C or UART interface.

Features

Can drive 4 DC Motors or 2 Stepper Motors

Can drive 6 Servos

Mbed Platform

STM32F0 coprocessor

Two TB6612FNG

6 expand IOs

Communicate with BBG by I2C or UART interface

Specification

Battery Input Voltage: 6~15V

H-bridge Working Voltage: 6~15V

DC/DC 5V output current: 2A max

3V3 output current: 350mA max

4 H-bridge driver,each rated current:1.2A, peak current:3.2A

6 Servo driver, working voltage: 5V, total current is not more than 1.5A

Input reverse connect protection

Over current protection: 3A one-off quick fuse

Basic Demo
Basic Demo



It is a demo which we connect Motor Bridge Cape with BBG to drive 1 Stepper Motor, 2 DC Motors and 6 Servos at the same time.



Documents

Please visit the Wiki page for more information about this product.
