The mbed Microcontrollers are a series of ARM microcontroller development boards designed for rapid prototyping.
- Find out more about all mbed Microcontrollers

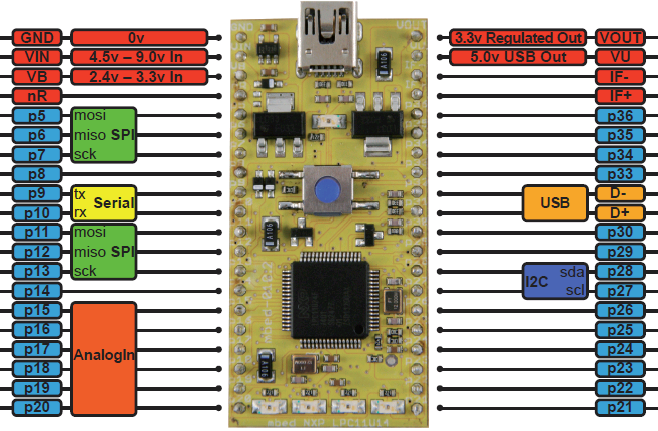

The mbed NXP LPC11U24 Microcontroller in particular is designed for prototyping low cost USB devices, battery powered applications and 32-bit ARM® Cortex™-M0 based designs. It is packaged as a small DIP form-factor for prototyping with through-hole PCBs, stripboard and breadboard, and includes a built-in USB FLASH programmer.
The mbed Microcontrollers provide experienced embedded developers a powerful and productive platform for building proof-of-concepts. For developers new to 32-bit microcontrollers, mbed provides an accessible prototyping solution to get projects built with the backing of libraries, resources and support shared in the mbed community.
NXP LPC11U24 MCU
- Low power ARM® Cortex™-M0 Core
- 48MHz, 8KB RAM, 32KB FLASH
- USB Device, 2xSPI, I2C , UART, 6xADC, GPIO
- 40-pin 0.1" pitch DIP package, 54x26mm
- 5V USB, 4.5-9V supply or 2.4-3.3V battery
- Built-in USB drag 'n' drop FLASH programmer
mbed.org Developer Website
- Lightweight Online Compiler
- High level C/C++ SDK
- Cookbook of published libraries and projects
Tools and Software
The mbed Microcontrollers are all supported by the mbed.org developer website, including a lightweight Online Compiler for instant access to your working environment on Windows, Linux or Mac OS X.
- Find out more about the mbed Online Compiler
Also included is a C/C++ SDK for productive high-level programming of peripherals. Combined with the wealth of libraries and code examples being published by the mbed community, the platform provides a productive environment for getting things done.
