Laser Keyboard Kit

$93.35

Part Number:  SS-110990207
Brand:  Seeed Studio Australia

Here comes the latest verion2 designed by RoboPeak, more compact, more reliable and a 3D printed framework!   Using lasers to create a virtual keyboard? This seems to be only existing in sci-fi movies. Well, with this Laser Keyboard Kit, you will not only be able to tap on laser projections as the keyboard, but also program it to be anything you want, such as...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Here comes the latest verion2 designed by RoboPeak, more compact, more reliable and a 3D printed framework!

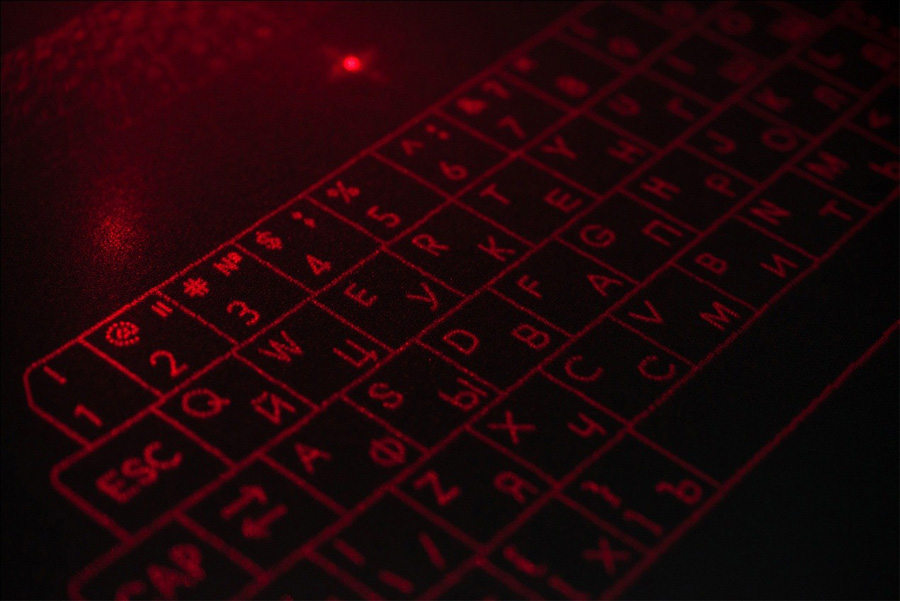

Using lasers to create a virtual keyboard? This seems to be only existing in sci-fi movies. Well, with this Laser Keyboard Kit, you will not only be able to tap on laser projections as the keyboard, but also program it to be anything you want, such as a laser multi-touch pad. With a few quick and simple assemblings and calibratings, your laser projection keyboard is ready to glow in the dark!


A laser projection keyboard is a form of computer input device whereby the image of a virtual keyboard is projected onto a surface: when a user touches the surface covered by an image of a key, the device records the corresponding keystroke. The projection is realized in four main steps and via three modules: projection module, sensor module and illumination module. The main devices and technologies used to project the image are a diffractive optical element, red laser diode, CMOS sensor chip and an infrared (IR) laser diode.


This Laser Projection Keyboard Kit V2 is based on the open-source laser keyboard project designed by RoboPeak Team. It works just like a standard keyboard on your PC/MAC with the help of the related signal processing software designed by RoboPeak. The signal processing software also supports turning your laser keyboard kit into a multi-touch pad. As an open-source project, you can freely make any changes/improvement to the current design and go through the implementation detail of the kit.


Application
  • DIY Laser Keyboard
  • Custom interactive input solution
  • Custom touch pad

System Compatibility
  • Windows/macOS

Specification
  • QWERTY Keyboard
  • Pure white 3D printed frame
  • Random access to get sexy purple version
  • Laser Safety Classification: Class 1M
  • Integrate custom 170°wide-angle vision camera (driver free) with 790nm infrared filter
  • Linear laser spec: 790nm 10mw
  • Dimensions: 5.5cm x 4cm x 10cm(almost half size of the Laser keyboard v1)
  • System Compatibility: Windows/MacOS

Shipping List
  • Camera Frame 1 unit
  • Laser Keyboard Projector Frame 1 unit
  • Power Board Mounting Base 1 unit
  • Camera (driver free) 1 unit
  • Laser keyboard v2 power board 1 unit
  • Linear laser module 1 unit
  • Laser Keyboard Projector 1 unit
  • M2x8 self-tapping screws 10 units
  • M2x12 self-tapping screws 3 units
  • Cable for camera 1 unit
  • Micro USB Cable 1 unit
