FEZ Hydra Mainboard

$150.00

Part Number:  SS-102990028
Brand:  Seeed Studio Australia

(LAST UNIT - this comes with the Hydra Basic Kit) See here for details https://www.ghielectronics.com/catalog/product/332 FEZ Hydra is a 100% open-source (hardware and software) .NET Gadgeteer compatible mainboard running .NET Micro Framework. It incorporates a 240Mhz AT91SAMRL ARM9 processor. With 16MB of SDRAM an 4MB of FLASH, FEZ Hydra is capable or running the most complex applications.   Key Features 14 .NET Gadgeteer compatible sockets that...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
(LAST UNIT - this comes with the Hydra Basic Kit)
See here for details https://www.ghielectronics.com/catalog/product/332
FEZ Hydra is a 100% open-source (hardware and software) .NET Gadgeteer compatible mainboard running .NET Micro Framework. It incorporates a 240Mhz AT91SAMRL ARM9 processor. With 16MB of SDRAM an 4MB of FLASH, FEZ Hydra is capable or running the most complex applications.

Key Features

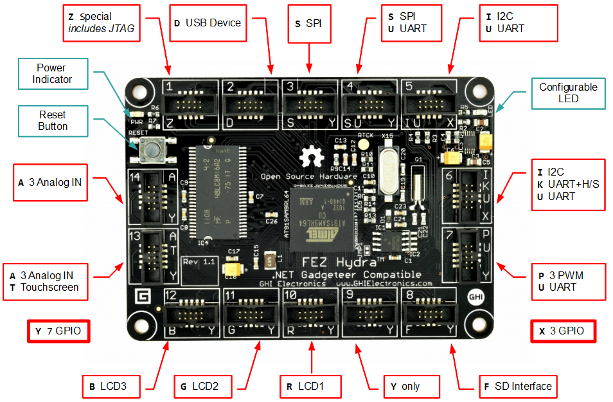

  • 14 .NET Gadgeteer compatible sockets that include these types: X, Y, A, D, F, I, K, P, S, T, U, R, G, B and Z.
  • 240Mhz ARM9 Processor (currently running at 200Mhz)
  • 16MB SDRAM
  • 4MB FLASH
  • Rich .NETMF open-source Software & Hardware
    • Complete Graphics support
    • TFT display interface (R/G/B sockets) with Touch screen
    • FAT16/FAT32
    • Full TCP/IP stack with SSL, HTTP, TCP, UDP, DHCP
    • USB Device
    • 4-bit SD card with no limit on SD card size
    • Analog
    • PWM
    • I2C
    • SPI
    • UART
  • Dimensions: 3.42" x 2.44"
Power
  • Requires .NET Gadgeteer standard red power modules.
  • Active power consumption 130 mA
  • Idle power consumption TBD
Environmental
  • Operating temperature: 0 to 70°C
  • RoHS compliant /Lead-free compliant
For more information about .NET Gadgeteer visit:
Resources
External Links
you need to download the following software to start your Gadgeteer:
  1. Development tool : Microsoft Visual C# Express 2010
  2. Micro framework:  Microsoft .NET Micro Framework 4.1 SDK
  3. The Gadgeteer core, mainboard SDk and module driver(GHI)
You can download these tools at :  http://tinyclr.com/support
If you encounter any problems when using this product, here is the forum from which you can get the technical support.
