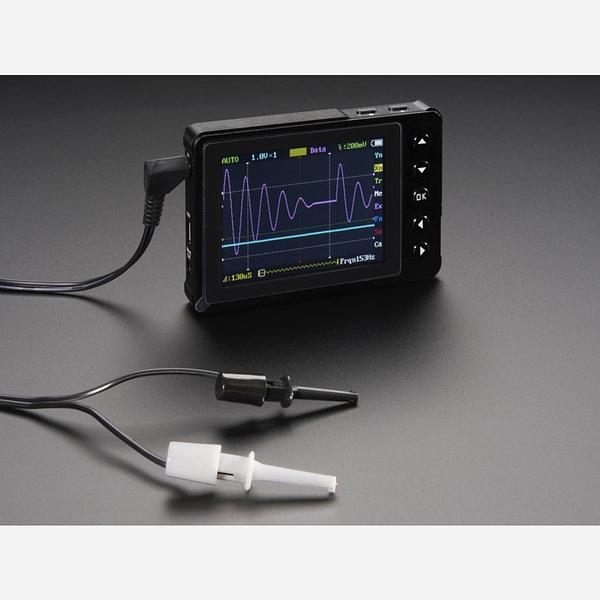

DSO Nano v3 - Pocket-size color digital oscilloscope [v3.0]

$193.95

Part Number:  AF-468
Brand:  Adafruit Australia

DescriptionThis cute pocket oscilloscope is a perfect companion to your tool box. For beginners, its a good starter scope - it is not as complicated as a benchtop scope so its easy to use. For advanced EE's, its useful as a scope-on-the-go, for field-debugging, when you don't want to drag your scope over, or when a floating-ground is needed (it will naturally do 'differential' measurements...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

This cute pocket oscilloscope is a perfect companion to your tool box. For beginners, its a good starter scope - it is not as complicated as a benchtop scope so its easy to use. For advanced EE's, its useful as a scope-on-the-go, for field-debugging, when you don't want to drag your scope over, or when a floating-ground is needed (it will naturally do 'differential' measurements as long as its not plugged into a computer USB port). It's not a terribly fast scope, best used for signals up to 100KHz, and it is only a single channel, but they still find uses for it all the time, especially with analog projects! The new version 3.0 has a nice fully-metal case for increased durability


  • Portable and lightweight, only 76 grams and 95mm x 62mm x 13mm
  • 2.8" 320x240 Color TFT display
  • Built in Lithium polymer battery, USB rechargeable
  • Waveform storage and playback to built in 2 MB flash memory. This model no longer has a microSD card slot, but it does have built in memory instead so no SD card needed!
  • 6 triggering modes
  • 1 channel input, 200Khz Analog Bandwidth, 1 Mega-sample-per-second. Best for use on signals from DC to 100 KHz
  • Complete measurement markers and signal characteristic
  • Built-in Signal Generator
  • Comes complete with: 2 types of probes, one with hooks, one for plugging into a PCB, screwdriver, carrying bag, stand
  • DSO Nano manual




Please note! The case is metal, so do not use the DSO on high voltages above earth ground! Also, while plugged into a USB port, the ground probe and case will be connected to Earth ground through the PC so do not connect the ground probe to a voltage above Earth ground.



Technical Details

Specifications

  • Display: Full Color 2.8" TFT LCD 65K 320×240
  • Analog bandwidth: 0 - 200KHz
  • Max sample rate: 1Msps 12Bits
  • Sample memory depth: 4096 Point
  • Horizontal sensitivity: adjustable with indicator
  • Vertical sensitivity: 10mV/Div~10V/Div (with ×1 probe)/ 0.5V/Div~100V/Div (with ×10 probe)
  • Vertical position: adjustable with indicator
  • Input impedance: >500KΩ
  • Max input voltage: 80Vpp (by ×1 probe)
  • Coupling: DCs
  • Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.
  • Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.
  • Signal Generator: 10Hz~1MHz square wave
  • Waveform storage: 2MB FLASH internal
  • PC connection via USB: as SD card reader
  • Upgrade: USB
  • Power supply: 500mAh 3.7V Lithium battery/ USB
  • Dimension (w/o probe) 91mm*62mm*13mm

DSO Nano manual

Source code (firmware) and schematic

Many users suggest updating the firmware, check this forum for details!
