DSCope

$429.04

Part Number:  SS-109990075
Brand:  Seeed Studio Australia

DSCope is an open source USB-based oscilloscope. It's specially designed for makers with professional specifications and an affordable price. DSCope can be used in academic, experiment, electronics maintenance, engineering task etc.   DSCope has a pocket size (101mm*74mm*16mm), which make it to be an ideal replacement to clunky traditional oscilloscope, and help you to save a big area for your working desktop.   DSCope works...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
DSCope is an open source USB-based oscilloscope. It's specially designed for makers with professional specifications and an affordable price. DSCope can be used in academic, experiment, electronics maintenance, engineering task etc.

DSCope has a pocket size (101mm*74mm*16mm), which make it to be an ideal replacement to clunky traditional oscilloscope, and help you to save a big area for your working desktop.

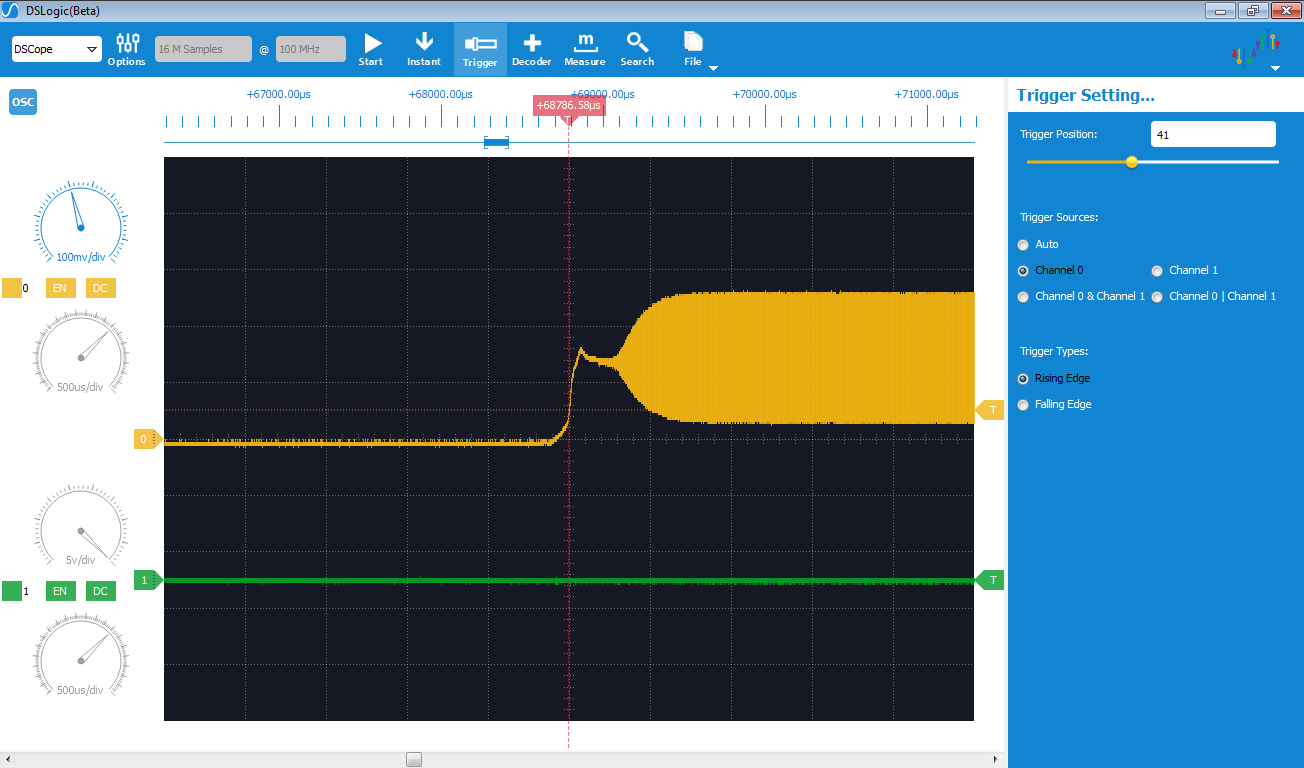

DSCope works with your PC, MAC or even windows tablet through USB interface, which bring a big screen oscilloscope to you without any extra cost.


Features:
  • Open source
  • Unibody aluminum shielded case
  • Auto zero skew adjustment
  • upgradable Hardware
  • Advanced digital trigger
  • Deep sample depth
  • USB interface, USB powered
  • Two channels
  • Signal Generator

Specification:
  • Analog Bandwidth: 50MHz
  • Max Sample rate: 200MHz @ 1 Channel / 100MHz @ 2 Channels
  • Max Sample Depth: 1M(real-time mode) / 16M(single mode)
  • Coupling: AC / DC / Ground
  • Input Characteristics: 1MΩ // ~15 pF
  • Protected Voltage: ±100 V (DC+AC peak)
  • Vertical Sensitivity: 10mV/div ~ 2V/div (x1) / 100mV/div ~ 20V/div (x10)
  • Horizontal Sensitivity: 10nS/div ~ 10S/div
  • Triggering Mode: Auto, Single, And, Or
  • Rising/Falling Edge trigger
  • Vertical precise, horizontal precise measurement
  • Waveform functions auto measurement: max, min, frequency, period
  • Support OS: windows, Linux, OS X
  • Dimension: 101 x 74 x 16 mm

Part List:
  • DSCope: x 1
  • USB cable: x 1
  • P6100 probes: x 2
  • Adjustment tool: x 1

Support:


For technical support and suggestions, please visit our forum.
