2.4GHz Micropower ZigBee Wireless module

$38.42

Part Number:  SS-317990015
Brand:  Seeed Studio Australia

This product is a based on NXP's latest high-performance radio frequency chip design from the zigbee module with high stability, low power consumption, high cost-effective, rich internal resources, 32bit processor with high-performance embedded chip and large-capacity flash, powerful function, user-friendly for customers to do secondary development. It supports multiple network protocols, wide range of usage, develop flexibly, scalably. The module has a small size, simple...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
This product is a based on NXP's latest high-performance radio frequency chip design from the zigbee module with high stability, low power consumption, high cost-effective, rich internal resources, 32bit processor with high-performance embedded chip and large-capacity flash, powerful function, user-friendly for customers to do secondary development. It supports multiple network protocols, wide range of usage, develop flexibly, scalably. The module has a small size, simple structure, easy to embed the customer's product

Features:

Product feature

  • Micro-power transmission, standard 20dB, divides into 3 floors, can control the transmission power by setting software.
  • Working band: 2.4G-2.485GHZ, global free applications operating band.
  • High noise immunity and low error rate, high-efficiency circulation interleaving error correction coding techniques and frequency hopping mechanism to improve the data burst of anti-interference and noise immunity.
  • Supports multiple protocols, 2.4G IEEE802.15.4, JENNet-IP, ZigBee light link, ZigBee Smart Energy and RF4CE protocol.
  • Receive sensitivity up to -104dBm, transmission distance far away.
  • Module reserve enough I / O digital interfaces and analog to digital conversion interface, enabling customers to secondary development and extensions.
  • Free debugging produce, wide operating voltage range: 3.3V-6V, you can customize 2.0V-3.6V.
  • Module of low power consumption, the dormancy current is 0.8Ua.

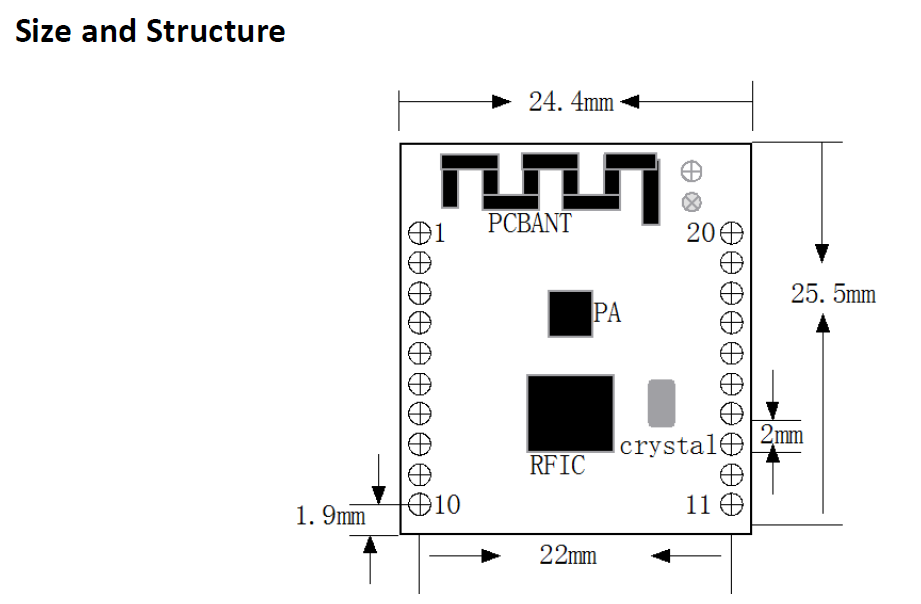

  • Small size, light weight, easy for clients to embed devices.
  • Reserved multiple antenna interfaces, including sucker antenna, glue stick antenna, antenna and IPX ceramic antenna connector.
  • Automatic network, automatically find the router, automatically form a robust mesh network topology.

Application Area

  • Robust and secure low power wireless applications
  • RF4CE remote control
  • JenNet-IP net work
  • ZigBee SE net work
  • ZigBee optical link network
  • Lighting and home automation
  • Toys and games peripherals
  • Smart energy
  • The energy collection, such as power of light switch



Specification:

Electrical Parameters:
Supply Voltage:2.0V-3.6V
Emission Current:130mA @20dBM
Receive Current:27mA
Dormancy Current:0.8uA

RF Technology Parameters:
Working Frequency:2.405GHZ-2.48GHZ
Transmitted Power:20dBm
Receive Sensitivity:-104dBm
Wireless Transmission Rate:250kbps

Other Technical Parameters
Sense Rate:4800bps~115200bps(can be set)
The interface data format:8E1/8O1/8N 1( choosable)
Working Temperature:-40℃ ~ +80℃ (industrial level)
Working Humidity:10%~90% relative humidity, without condensation
