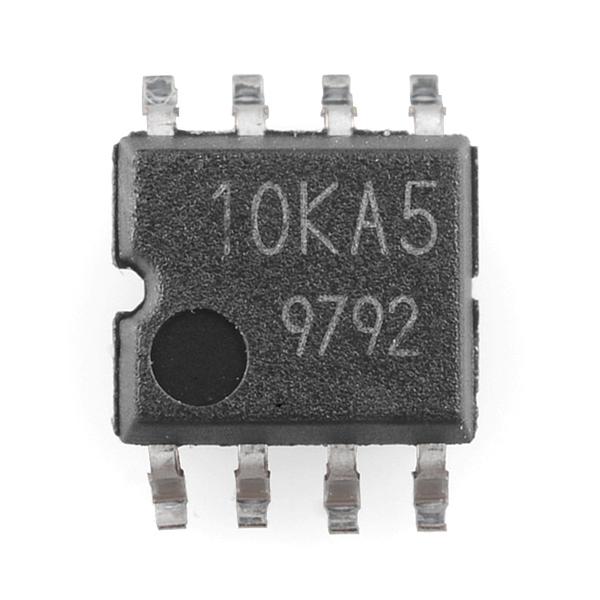

Voltage Regulator - BD10KA5W (500mA)

$1.46

Part Number:  SF-COM-10827
The BD10KA5W is a low-saturation regulator with an output voltage precision of ±1%. It also has built-in overcurrent protection that prevents the destruction of the IC, due to output short circuits and a thermal shutdown circuit. Features: Max Output Current : 500mA Output Voltage Precision : 1.0V ±1% Built-in Overcurrent Protection Circuit Built-in Thermal Shutdown Circuit Shutdown Switch Operating Temperature Range : -40C to +105C...
We can ship today: - units (delivered by -)
We can ship in - days: - units (delivered by -)

The BD10KA5W is a low-saturation regulator with an output voltage precision of ±1%. It also has built-in overcurrent protection that prevents the destruction of the IC, due to output short circuits and a thermal shutdown circuit.

Features:

  • Max Output Current : 500mA
  • Output Voltage Precision : 1.0V ±1%
  • Built-in Overcurrent Protection Circuit
  • Built-in Thermal Shutdown Circuit
  • Shutdown Switch
  • Operating Temperature Range : -40C to +105C
