Snap-Action Switch with 50mm Lever: 3-Pin, SPDT, 5A
1403

$1.30
Free shipping for all orders over $150.
SKU We can ship in 24 hours We can ship in 3 to 7 days
1403 5 units 640 units

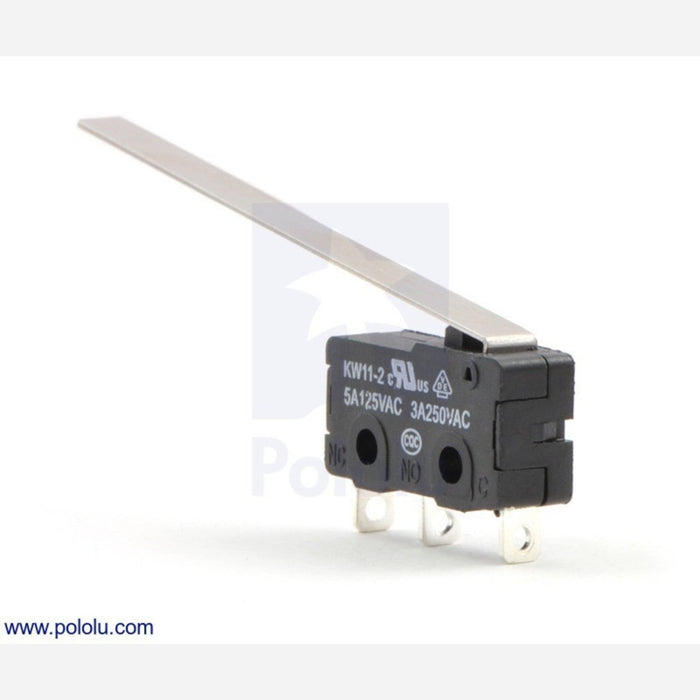

This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch, but the long lever arm makes it especially useful as a tactile bump sensor for your robot (e.g whiskers or antennae). The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the lever arm is 50 mm long.

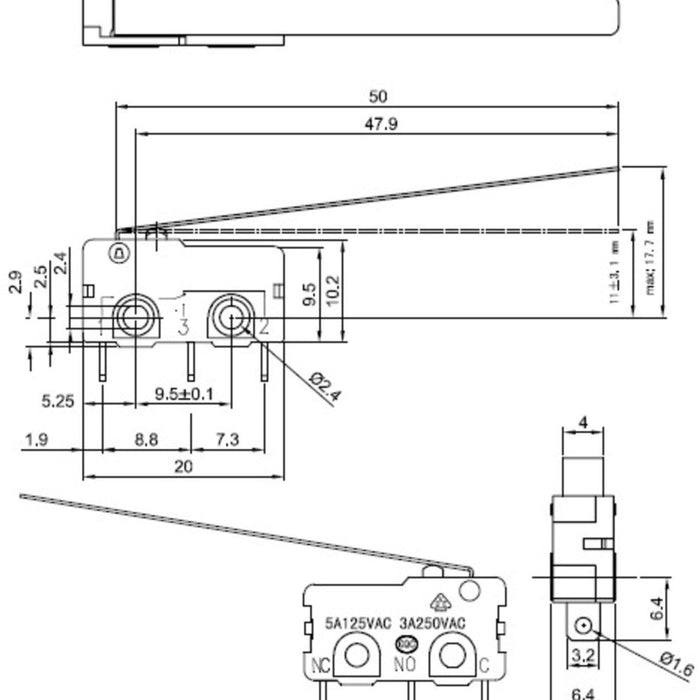

This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch, but the 2"-long lever arm makes it especially useful as a simple tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the lever arm is 50 mm (2") long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.
