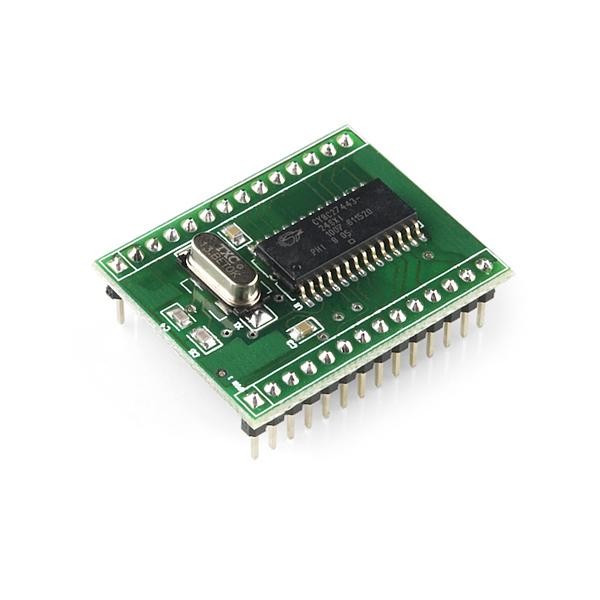

RFID Module - SM130 Mifare (13.56 MHz)

$47.43

Part Number:  SF-SEN-10126
The SMB130 is a 28 pin DIP module that includes all necessary components for a 13.56 MHz RFID Mifare, aside from a PCB antenna. The module communicates over UART or I2C with simple protocols. It also has 2 general purpose inputs and 2 general purpose outputs for switches, relays, etc. Check below for Mifare RFID tags. Note: You will need an antenna or evaluation board...
We can ship today: - units (delivered by -)
We can ship in - days: - units (delivered by -)

The SMB130 is a 28 pin DIP module that includes all necessary components for a 13.56 MHz RFID Mifare, aside from a PCB antenna.

The module communicates over UART or I2C with simple protocols. It also has 2 general purpose inputs and 2 general purpose outputs for switches, relays, etc.

Check below for Mifare RFID tags.

Note: You will need an antenna or evaluation board for this module to work. Check the related product below.

Features:

  • UART interface up to 115200bps
  • I2C interface up to 400 KHz
  • Complete read/write module excluding antenna
  • 5V supply
  • 2 general purpose outputs
  • 2 general purpose inputs
