MPLAB PICkit 3
PGM-09973

$68.60
Free shipping for all orders over $150.
SKU We can ship in 24 hours We can ship in 7 days
PGM-09973 0 units 56 units

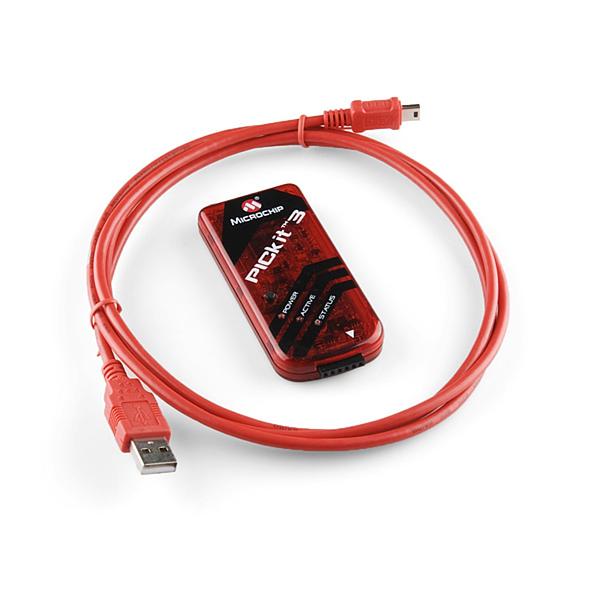

Description: This is the new PICkit 3 from Microchip. If you want an official programmer from Microchip, this is it! The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to a PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2/ 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. miniUSB cable included.

Features:

  • USB (Full speed 12 Mbits/s interface to host PC)
  • Real-time execution
  • MPLAB IDE compatible (free copy included)
  • Built-in over-voltage/short circuit monitor
  • Firmware upgradeable from PC/web download
  • Fully enclosed
  • Supports low voltage to 2.0 volts (2.0v to 6.0v range)
  • Diagnostic LEDs (power, busy, error)
  • Read/write program and data memory of microcontroller
  • Erase of program memory space with verification
  • Freeze-peripherals at breakpoint

Documents:
