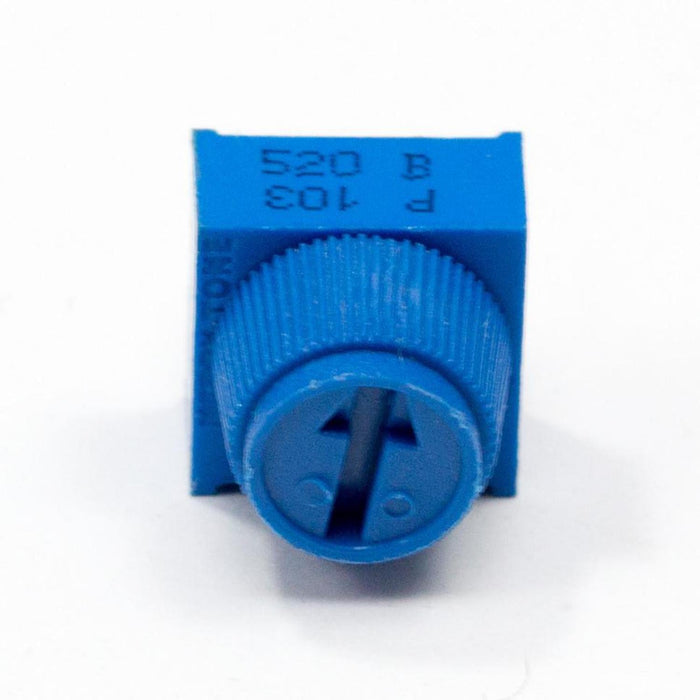

The resistance of these trim potentiometers ranges linearly from 0Ω to 10KΩ over a full cycle (240°).

They are horizontally mounted and ideal for breadboarding or perfboard use due to the 0.1" spacing off the pins. Rated for up to 1/6th of a watt and good for 10,000 cycles.

  • Maximum power: 1/6th W (0.15W)
  • Linear resistance range (±3%)
  • Diameter: 10.3mm
  • Height: 4.5mm
  • Package: Through hole 0.1" spacing
  • Resistive element: Carbon
  • Tolerance: ±20%
  • Rated mechanical cycles: 10,000

The Trim Potentiometer (10KΩ) - 10kΩ appears in the following collections:

SKU PI-COM1001
