We have ✅ 4 available of the EC-CT0917KIT in our Sydney warehouse. An extra 100 units will be available shortly.

Express post delivery (2-5 business days)

Do you want to DIY some funny and practical “IOT” applications? Welcome to the world of ESP8266 NodeMCU. It’s an ESP8266 WiFi module with Crowtail interface. We will use it to make some simple application of fun with various Crowtail modules.

We pick up 27 kinds of Crowtail modules to go with our protagonist- Crowtail- nodeMCU. All of them could be DIY into a small Smart Home applications, as you have learned our 19 detail lessons about these modules.

The guide book contains step by step instructions of how to achieve the goal function. Full example code is provided and explained and even includes some useful software tools also be provided.

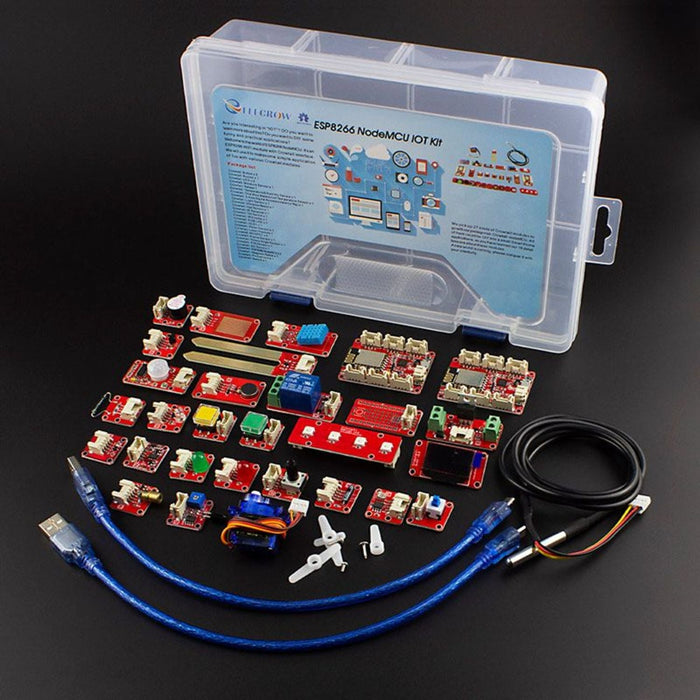

A total of 30 modules are housed in this plastic (24cm x 16 cm)box , of course what we can use with ESP8266 NodeMCU not just for these, you can try more combinations of modules or buy more other crowtail modules.

Lessons

  • Lesson1: LED Control
  • Lesson2: Button Control LED
  • Lesson3: Moisture Sensor
  • Lesson4: Vibration Motor
  • Lesson5: Emergency Light
  • Lesson6: Raining detect
  • Lesson7: Flame detect
  • Lesson8: Motion Detect
  • Lesson9: Hall Switch
  • Lesson10 Breathing Lamp
  • Lesson11 Laser Pointer
  • Lesson12: One Wire Waterproof Temperature Sensor
  • Lesson13: Rainbow Light
  • Lesson14 MOSFET Control Fan
  • Lesson15: Read Data From ADXL345 Digital Accelerometer Sensor
  • Lesson16: Servo Control
  • Lesson17: TWO NodeMCU Communication
  • Lesson18: DHT11 Temperature Display System
  • Lesson19: Wireless Toliet Led Indicator

Specifications

  • Case sizes(length x width x height): 232mm x 162mm x 60mm
  • Weight: 510g

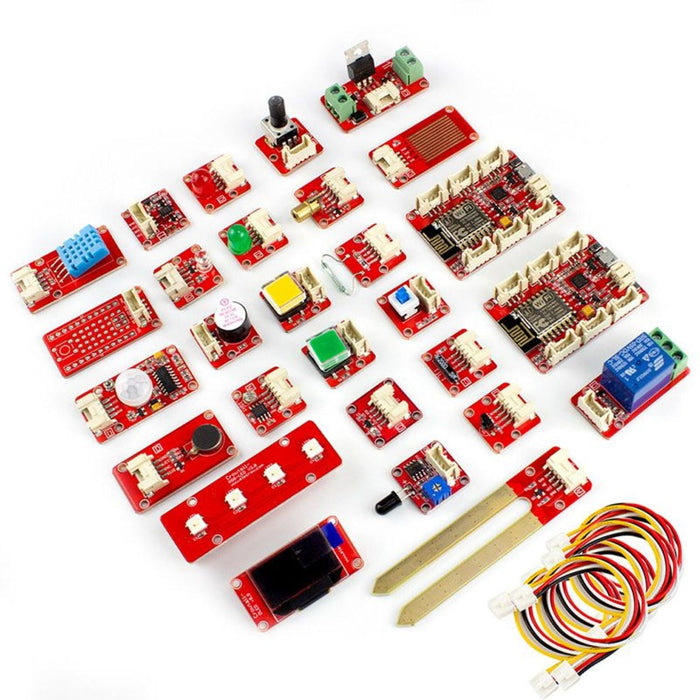

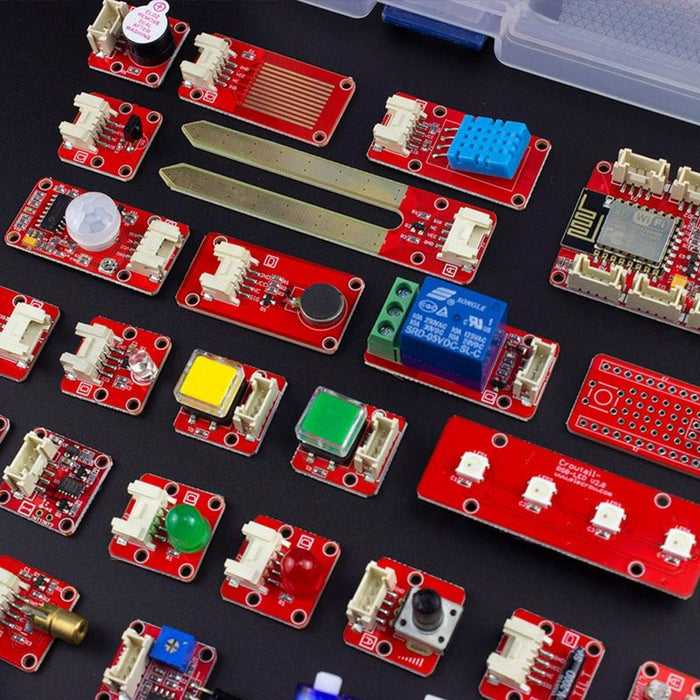

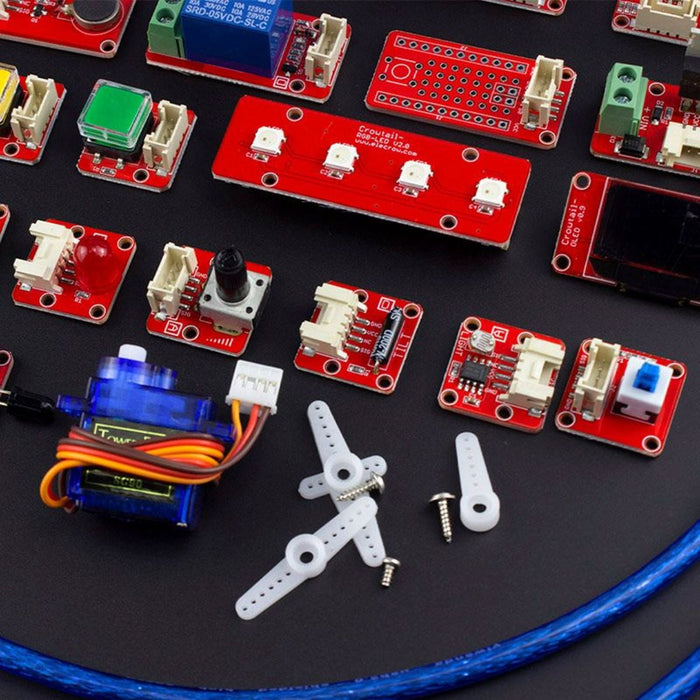

Package list

  • Crowtail- Buzzer x1
  • Crowtail- Button x2
  • Crowtail- LED x2
  • Crowtail- Hall Sensor x1
  • Crowtail- IR Receiver x1
  • Crowtail- IR Emitter x1
  • Crowtail- RGB-LED x1
  • Crowtail- One Wire Waterproof Temperature Sensor x1
  • Crowtail- Rotary Angle Sensor x1
  • Crowtail- 3-Axis Digital Accelerometer(±16g) x1
  • Crowtail- 9G Servo x1

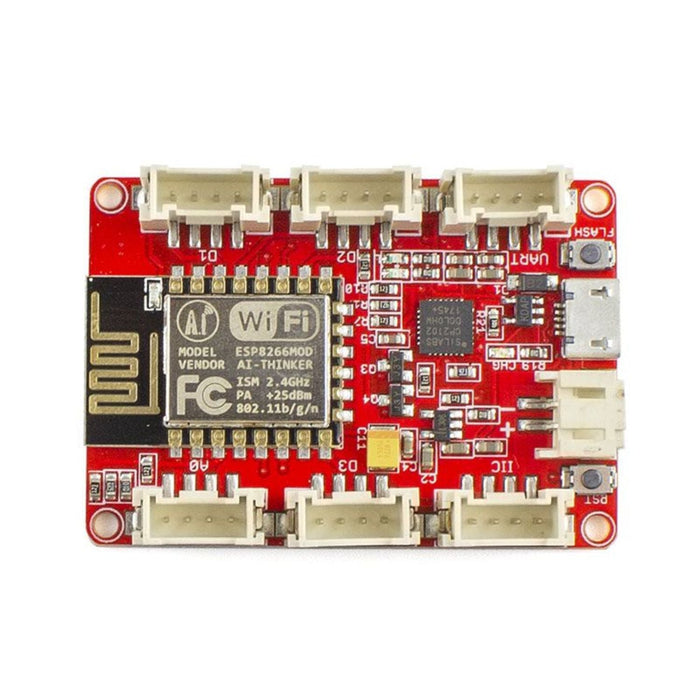

  • Crowtail- ESP8266 nodeMCU x2
  • Crowtail- Switch x1
  • Crowtail- Vibration Sensor x1
  • Crowtail- Moisture Sensor x 1
  • Crowtail- OLED x 1
  • Crowtail- Relay x 1
  • Crowtail- Temperature& Humidiy Sensor x 1
  • Crowtail- Light Sensor x 1
  • Crowtail- Tilt Switch x 1
  • Crowtail- Water Sensor x 1
  • Crowtail- Laser Pointer x 1
  • Crowtail- MOSFET x 1
  • Crowtail- Flame Sensor x 1
  • Crowtail- Protoboard x 1
  • Crowtail- Magnetic Switch x 1
  • Crowtail- PIR Motion Sensor x 1
  • Micro USB cable x 2

Wiki & External links

Arduino code

User manual (Tutorial)

The ESP8266 NodeMCU IOT Kit appears in the following collections:

SKU EC-CT0917KIT
