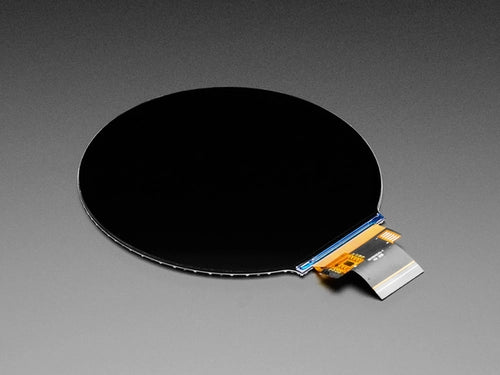

Round RGB TTL TFT Display - 4" 720x720
100 units will be available shortly.
This is a screen for advanced hackers who like the look of a nice, round TFT screen with tons of pixels. This massive 4" diagonal-sized display has 720x720 16-bit full-color pixels and is an IPS display, so the color looks great up to 80 degrees off-axis in any direction.
The TFT driver is ST7701S and uses both SPI and TTL RGB 'dot clock' data. The SPI is only for configuring the display - you cannot draw pixels over SPI! Also, despite having a 40-pin connector, it does not have the same pinout as standard 'rectangular' 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays. It's a new kind of beast for sure.
To make stuff light up you'll need a chip that can perform TTL RGB TFT driving, which means a powerful microcontroller such as the ESP32-S3 with octal PSRAM or a computer like a Raspberry Pi (with either direct-DPI connection or an intermediary chip like the ICN6211). Either way, it's not something you can wire up to your Feather or Arduino!
This is just the display module! No PCB is included!
The Round RGB TTL TFT Display - 4" 720x720 appears in the following collections:
SKU AF-5793
