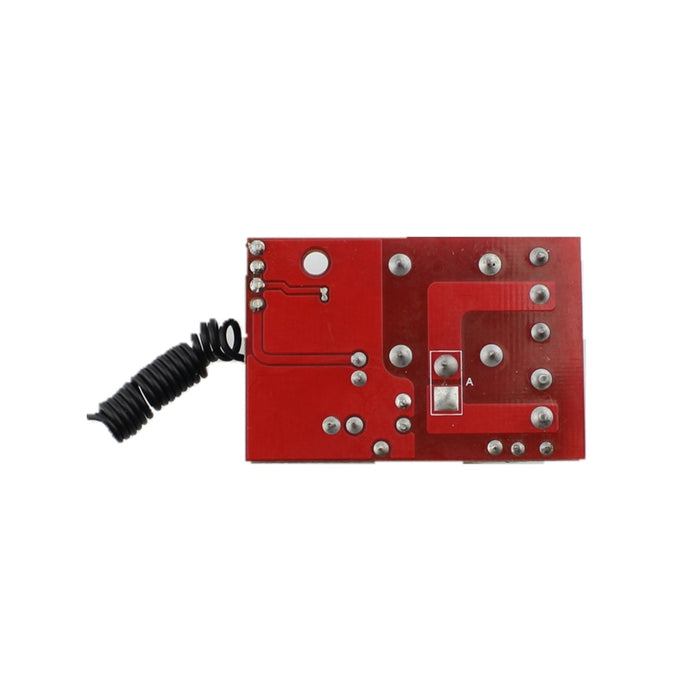

1 Channel RF Remote Control Module AC 110V - 220V

This 1 channel latching relay module whose output is passive output, can be controlled by its 2-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.

Features

  • Able to control various appliances and other equipments with large current
  • Equipped with high-current relay
  • Standard interface that can be controlled directly by microcontroller
  • LED indication for Relay output status

Specification

  • Operating voltage: AC 110-220V
  • Load current: about 10A
  • Module size: 50 x 35 x 22mm
  • Module type: 433m RF wireless receiving
  • Remote control distance: 10-50 meters
  • Work status: Self-locking

The 1 Channel RF Remote Control Module AC 110V - 220V appears in the following collections:

SKU EC-CRF22001C
